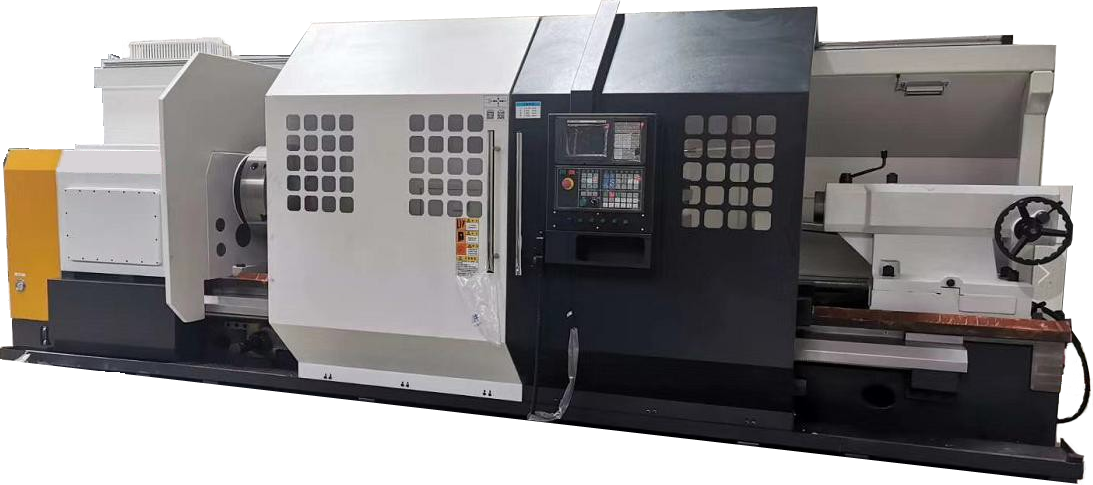

A flat-bed type CNC lathe driven by servo motor, with four gear hydraulic shift and stepless speed regulation in gear. It can process the machining of inner and outer circles, steps, cones, spheres and threads of various shapes of disc parts, ring parts, shaft parts and parts with precise and complex shapes.
COMPOSITION OF MACHINE
(1) HEADSTOCK (HRB SPINDLE BEARINGS)
(2) MACHINE-BED (FLAT-BED TYPE).
(3) TAILSTOCK （STANDARD: MANUAL TAILSTOCK）
(4) CARRIAGE AND DRIVE (AC SERVO MOTOR, BALL SCREWS)
(5) CROSS SLIDE AND DRIVE (AC SERVO MOTOR, BALL SCREWS)
(6) TOOL POST (STANDARD: 4-STATION TOOLPOST)
(7) COOLING PUMP
(8) LUBRICATION UNIT
(9) CHUCK （STANDARD: 315MM 3-JAW MANUAL CHUCK）
(10) SEMI-CLOSED SHIELDING COVER
(11) SPINDLE DRIVE UNIT (SPINDLE MOTOR CONTROLLED BY EMERSON INVERTER)
SPECIFICATIONS
Work spindle rotating and table reciprocating are ganged/linked to achieve spiral movement.Work table travels along V-and-flat guide ay (i.e. one guide way is V-located on the opposite end of wheelstock rotary drum).The internal grinding wheel spindle adopts a high-speed (E-spindle) grinding wheel dressing by a diamond disc.
CNC system is SIEMENS 828D
These axes are all driven by SIEMENS servo motors Bearings of table ball screw and wheelstock feedings ball screw are from world-famous brands.
| ITEMS | UNIT | PARAMETERS |
| HK125 |
| Capacity | Max. swing over bed | mm | Φ1250 |
| Max. swing over slide | mm | Φ900 |
| Distance between centers | mm | 1500/3000 |
| Max. turning length | mm | 1300/2800(Vertical 4-station) |
| Bed way width | mm | 755 |
| Spindle | Spindle thru-hole | mm | φ130 |
| Spindle nose | | A2-15 |
| Spindle speed | r/min | Ⅰ 3.5-160，Ⅱ 5-233，Ⅲ 7- 345，Ⅳ 11-500 |
| Spindle motor power | kW | 22 |
| Feed | X travel | mm | 630 |
| Z travel | mm | 1300/2800 |
| X/Z-axis motor power | kW | 3.6/4.2 |
| Tailstock | Quill diameter | mm | Φ160 |
| Quill travel | mm | 300 |
| Quill taper | | Morse No.6 |
| Turret | X/Z-axis rapid traverse rate | m/min | 3/6 |
| Number of stations | | 4 |
| Tool section | mm | 40×40 |
| Others | Power source | kVA | 40 |
| Dimensions(L×W×H) | mm | 4640/6140×2650×2290 |
| Weight | kg | 11000/12500 |
|
