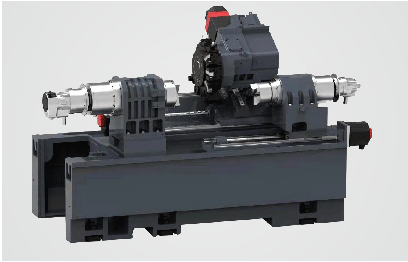

Those machines are multi-tasking, multi-function CNC machines used for producing complex workpieces in one operation. These machines are capable of turning a workpiece and applying rotating tooling operations.

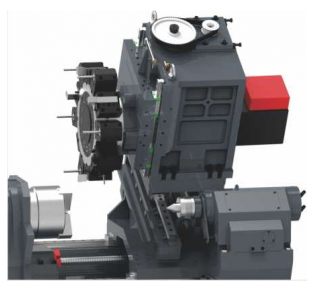

INTEGRATED POSITIVE Y AXIS
Longmen structure, super rigid
Integrated positive Y axis structure belongs to high-rigidity heavy cutting and its performance is better than the interpolation Y axis.
a. Single Y axis motion heavy cutting is better than interpolation Y axis and the Y axis is perpendicular to the X axis.
b. The plane contour processing is smoother and flatter.
c. More convenient for compound surface and contour processing. "Positive Y" turn-milling combined equipment has obvious advantages in machining plane milling compared with "interpolation Y" turn-milling combined. The movement of the "Positive Y" Y-axis is perpendicular to the X-axis, which is a single-axis movement and the "interpolation Y" Y-axis movement is to interpolate a straight line through the simultaneous movement of X-axis and Y-axis, the flatness of the milling plane and the comparison of the “positive Y" axis turn-milling combined，"Positive Y" axis turn-milling combined processing is obviously bright and flat

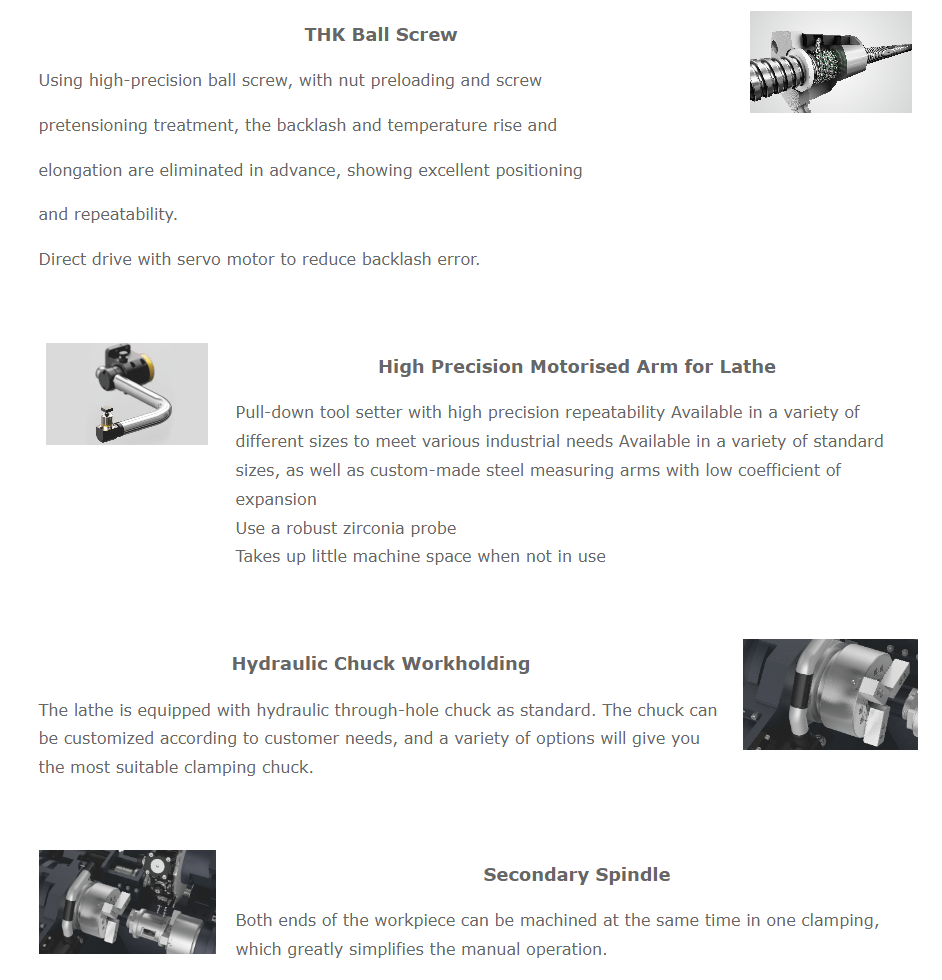

Double fixed ball screw
High-quality ball screws and roller guides from top global manufacturers are used. Although expensive, only high-quality products can meet the high precision and long service life required by customers.
Direct-Coulled Servomotors
The servo motor is directly connected to the ball screw via a steel coupling, which ensures no degeneration and misalignment even under heavy loads. This will greatly improve positioning accuracy, and thread and contour machining will be more accurate.

|
